Alpha M16112LW, 16/12C Industrial Series M, Cable Trays, Control Cable, Unshielded, 600V

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha M16112LW, 16/12C in.dustrial Series M, Cable Trays, Control Cable, Unshielded, 600V

SKU
AWM16112LW-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

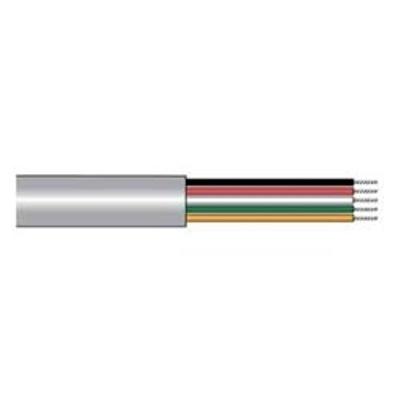

Alpha M16112LW, 16/12C Industrial Series M, Cable Trays, Control Cable, Unshielded, 600V

Description:
Alpha Wire's Series M control cable offers industry-leading mechanical and electrical performance for stationary cable trays.

Jacket Color:
Slate

Conductor Color Coding:

Applications:
• Medium-to high-flex equipment
• Factory equipment interconnects
• Robotics
• Machine tools
• Automotive assembly equipment
• Conveyor systems
• Control panels
• Solar farms

• Transfer shuttles
• Automated pick-and-place systems

• PLC-controlled equipment
• Automated handling systems

• Control/monitoring of speed and position

Operating Temperature:

-25°C to +90°C (static)
–5°C to +90°C (dynamic)


Flex Cycles:
1.5 Million

Compliances:
CA Prop 65
UL TC-ER
UL WTTC (1000 V)

UL PLTC (300 V)
ROHS Compliant
CSA AWM I/II A/B FT4
CE LVD 73/23/EEC Amend. 93/68/EEC


Alpha M16112LW Specifications:
Size: 16 AWG
Number of Conductors: 12
Conductor Strand: 26/30
Conductor: Finely Stranded Bare Copper
Jacket Thickness: 0.065 inches
Jacket: Slate PVC
Insulation Thickness: 0.016 inches
Insulation: PVC/nylon
Insulation Color: Blue
Outside Diameter: 0.557 inches
Weight: 0.214 lbs per/ft
Voltage: 600V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
Wire Size16 AWG
# of Conductors12 Conductors
O.D. (Inches)0.557
ShieldedNo
