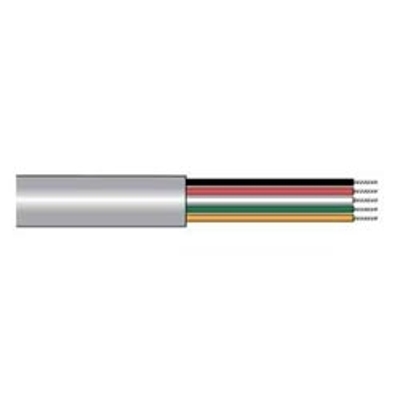

Alpha M13303, 22/3C Communication and Control Cable, Unshielded, 300V

SKU AWM13303
How will you purchase this wire?
0.220000 0.220000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha M13303, 22/3C Communication and Control Cable, Unshielded, 300V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.172 in.

  • Shielded

    No

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha M13303, 22 AWG 3 Conductors, Communication and Control Cable, Unshielded, 300V

Color Code:
Black, Red, Green

Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Modems
Multiplexers
Serial data interfaces
Banking systems

Features:
Stranded tinned copper conductors
Semirigid PVC Insulation
Slate PVC jacket

Compliances:
CA Prop 65
Reach
UL AWM 2576
UL CM
CSA CM


Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:
Size: 22 AWG
Number of Conductors: 3
Conductor Strand: 7/30
Outside Diameter: 0.172 inches
Insulation Thickness: 0.010 inches
Weight: 0.018 lbs/ft
Voltage: 300 V



See Less
