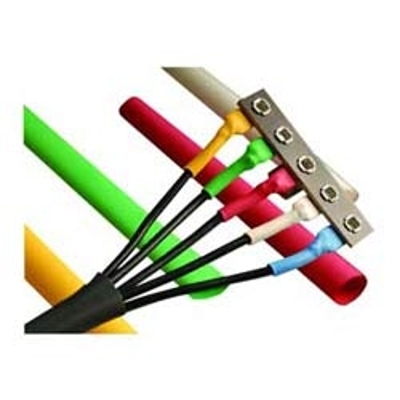

Alpha F221B3/8 - Flame Retardant Heat Shrink Tubing, Irradiated Polyolefin, 0.375 Inch, 2 to 1 Shrink Ratio

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
50 ft.
100 ft.
Add a length

 Free Shipping on all orders over $1000

Alpha F221B3/8 - Flame Retardant Heat Shrink Tubing, Irradiated Polyolefin, 0.375 Inch, 2 to 1 Shrink Ratio

SKU
AWF221B3/8

Product Details

Learn everything you want to know about this product to make an informed purchase

Alpha F221B3/8 - Flame Retardant Heat Shrink Tubing, Irradiated Polyolefin, 0.375 Inch, 2 to 1 Shrink Ratio

Description
Our FIT heat-shrink tubing offers a reliable way to protect and seal terminations or add additional mechanical ruggedness. FIT preferred heatshrink products are made from premium compounds under the tightest manufacturing controls. This means FIT will consistently have excellent physical characteristics such as low longitudinal shrinkage and wide temperature ranges while providing an elegant appearance when used alone or on OEM equipment.


Wall Thickness:  0.025 Inch
Diameter Before Shrink:  0.375 Inch
Diameter After Shrink:  0.187 Inch
Weight: 0.04 lbs/ft
Color: Black (Call for other Colors)

Features and Benefits:
• Flame retardant
• Cross-linked polyolefin (Tubing Material)
• Excellent general-purpose tubing
• Low water absorption
• UV resistant (black only)
• Operating Temperature  -55°C to +135°C,  -55°C to +125°C (UL,CSA)
• Shrink Temperature 90°C min, 121°C full recovery


Standards
• UL 224 (except clear)
• CSA 198 (except clear)
• CA Prop 65
• RoHS Compliant
• Reach
• AMS-DTL-23053/5 Class 1 (except clear)
• AMS-DTL-23053/5 Class 2 (clear)

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
StockedYes
