Alpha F1051/8 - Flame Retardant Heat Shrink Tubing, Irradiated PVC, .125 Inch, 2 to 1 Shrink Ratio

Alpha F1051/8 - Flame Retardant Irradiated PVC, Heat Shrink Tubing, .125 Inch, 2 to 1 Shrink Ratio

Description

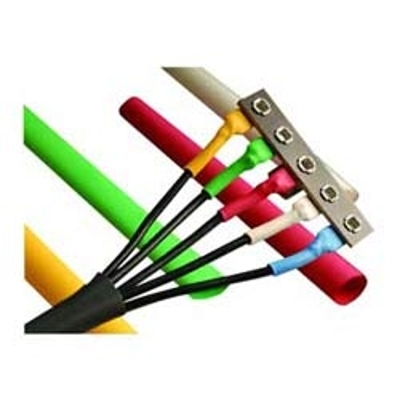

Our FIT heat-shrink tubing offers a reliable way to protect and seal terminations or add additional mechanical ruggedness. FIT preferred heatshrink products are made from premium compounds under the tightest manufacturing controls. This means FIT will consistently have excellent physical characteristics such as low longitudinal shrinkage and wide temperature ranges while providing an elegant appearance when used alone or on OEM equipment.

Wall Thickness:  0.025 Inch
Diameter Before Shrink:  0.125 Inch
Diameter After Shrink:  0.062 Inch
Weight: 0.01 llbs/ft
Color:  Black

Features and Benefits:
• Low Shrink Temperature
• Flame retardant
• Fast recovery time
• 30% stronger than standard polyolefin
• Low water absorption
• UV resistant
• Operating Temperature  -20°C to +105°C
• Shrink Temperature 100°C min, 105° full recovery

Standards
• UL 224 VW-1
• CSA 198
• CA Prop 65
• RoHS Compliant
• Reach
• AMS DTL-23053/2 Class 1 (except longitudinal shrinkage)

View Spec Sheet for Complete Details
