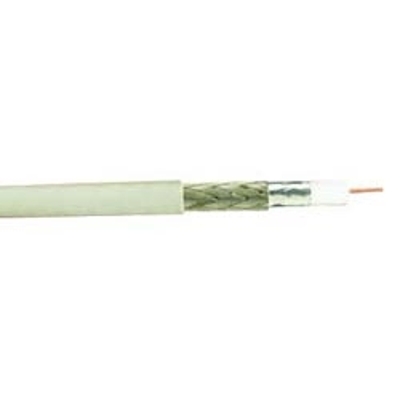

Alpha 9059C, 22 AWG, RG-59/U Solid BC, Braid shielded, Coaxial Cable

Alpha 9059C, 22 AWG, RG-59/U Solid BC, Braid shielded, Coaxial Cable

Description:
For broadcast quality video transmission, our precision video cables use FEP dielectrics to achieve low capacitance, high velocities of propagation, and tight tolerances for maximum signal integrity. Insulation and jacket materials meet the requirements of military specifications and regulatory agencies such as UL and CSA.

Conductor:
Bare Copper

Conductor Color:
Natural

Insulation:
Polyethylene(PE)

Approvals:
CA Prop 65
Military JAN-C-17A/RG-59/U
UL CL2
UL AWM 1354
CSA CMG, CSA FT4
ROHS
Reach

Specifications:

Size: 22 AWG
Conductor Strand: Solid
Insulation Thickness: 0.146 inches
Outside Diameter: 0.242 inches
Temp: -20°C to +60°C
Voltage: 1700V
Weight: 0.056 lbs /ft

Spec Sheet:

View Spec Sheet for Complete Details (PDF)
