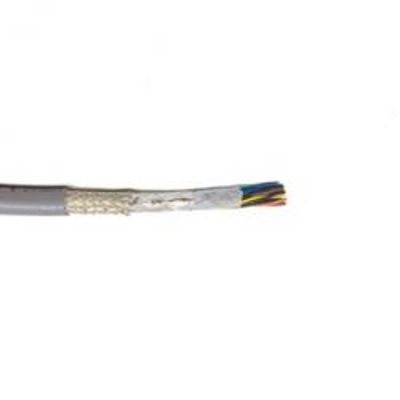

Alpha 86603CY, 24/3PR Xtra-Guard Continuous Flex Data Cable, SupraShield Foil/Braid, 300V

SKU AW86603CY
How will you purchase this wire?
3.540000 3.540000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 86603CY, 24/3PR Xtra-Guard Continuous Flex Data Cable, SupraShield Foil/Braid, 300V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    6 Conductors

  • # of Pairs

    3 Pair

  • O.D. (Inches)

    0.272 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 86603CY, 24 AWG 3 Pair Xtra-Guard Continuous Flex Data Cable, SupraShield Foil/Braid, 300V

Description:
Meet a wide range of flexing needs with Xtra-Guard Flex cables, from light flexing to continuous multiaxis flexing. These long-lasting flexible cables are designed to provide excellent performance in highflex, high torsion, and continuous flex applications, such as motion control and robotics.

Jacket Color:
Slate

Conductor Color Coding:
Black-Red, Black-White, Black-Green

Applications:
• Cartesian robots
• Articulated multi-axis robots
• Automation networking
• Machine tools
• Automotive assembly equipment
• Conveyor systems
• Control panels
• Flex and static track
• Transfer shuttles
• Sensor/actuator-to-controller connections
• Material-handling equipment

Operating Temperature:
+5°C to +105°C (flexing)
–10°C to +105°C (stationary)

Flex Cycles:
6 Million

Compliances:
CA Prop 65
CSA CMG
CE
ROHS Compliant
CSA AWM I/II A/B FT4
UL AWM 2661

Alpha 86603CY Specifications:
Size: 24 AWG
Number of Pairs: 3
Conductor Strand: 10/34
Jacket Thickness: 0.040 inches
Outside Diameter: 0.272 inches
Voltage: 300V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details
