Alpha 86003CY, 28/3C Xtra-Guard Contin.uous Flex Data Cable, Foil/Spiral Shielded, 300V

SKU
AW86003CY-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

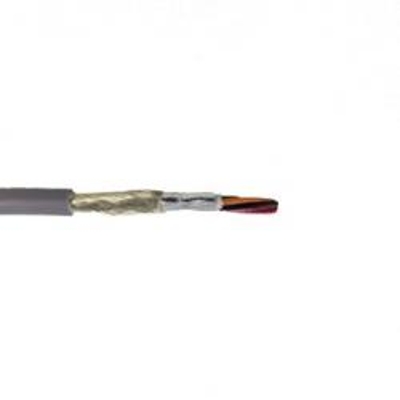

Alpha 86003CY, 28 AWG 3 Conductor Xtra-Guard Continuous Flex Data Cable, Foil/Spiral Shielded, 300V

Description:
Meet a wide range of flexing needs with Xtra-Guard Flex cables, from light flexing to continuous multiaxis flexing. These long-lasting flexible cables are designed to provide excellent performance in highflex, high torsion, and continuous flex applications, such as motion control and robotics.

Jacket Color:
Slate

Conductor Color Coding:
Black, Red, White

Applications:
• Cartesian robots
• Articulated multi-axis robots
• Automation networking
• Machine tools
• Automotive assembly equipment
• Conveyor systems
• Control panels
• Flex and static track
• Transfer shuttles
• Sensor/actuator-to-controller connections
• Material-handling equipment

Operating Temperature:
+5°C to +105°C (flexing)
–10°C to +105°C (stationary)


Flex Cycles:
6 Million

Compliances:
CA Prop 65
CSA CMG
CE
ROHS Compliant
CSA AWM I/II A/B FT4
UL AWM 2661


Alpha 86003CY Specifications:
Size: 28 AWG
Number of Conductors: 3
Conductor Strand: 7/36
Jacket Thickness: 0.040 inches
Outside Diameter: 0.180 inches
Voltage: 300V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
Wire Size28 AWG
# of Conductors3 Conductors
O.D. (Inches)0.180
