Alpha 78333, 22/3C Supra-Shield Foil/Braid Mini Communication Cable, EcoCable, 300V

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha 78333, 22/3C Supra-Shield Foil/Braid Min.i Communication Cable, EcoCable, 300V

SKU
AW78333-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

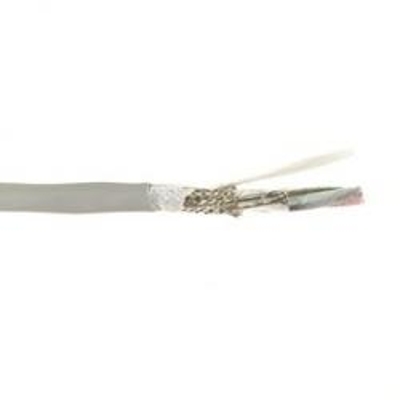

Alpha Wire 78333, 22/3C EcoCable® Mini Communication Supra-Shield Foil/Braid Shielded Cable 300V

Color:
Black, Brown, Red

Applications:
EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.

Features:
Up to 32% smaller than PVC
Up to 44% lighter than PVC
92% lower outgassing than PVC
100% recyclable mPPE insulation and jacketing
Contains no halogens, phthalates, or heavy metals
Multiconductor or multipair
Foil Shielded

Compliances:
UL AWM 21460
UL VW-1
CSA I A/B FT1
CE
RoHS
REACH
Suitable for use in NFPA 79 applications



Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 22 AWG
Number of Conductors: 3
Conductor Strand: 19/34
Insulation Thickness: 0.007 inches
Jacket Thickness: 0.015 inches
Outside Diameter: 0.164 inches
Voltage: 300V



More Information
Wire Size22 AWG
# of Conductors3 Conductors
O.D. (Inches)0.164 in.
