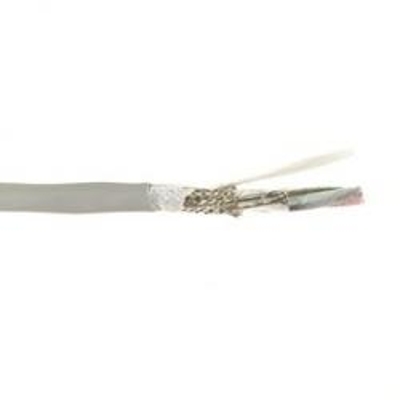

Alpha 78332, 22/2C Supra-Shield Foil/Braid Mini Communication Cable, EcoCable, 300V

Alpha Wire 78332, 22/2C EcoCable® Mini Communication Supra-Shield Foil/Braid Shielded Cable 300V

Color:
Black, Brown

Applications:
EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.

Features:
Up to 32% smaller than PVC
Up to 44% lighter than PVC
92% lower outgassing than PVC
100% recyclable mPPE insulation and jacketing
Contains no halogens, phthalates, or heavy metals
Multiconductor or multipair
Foil Shielded

Compliances:
UL AWM 21460
UL VW-1
CSA I A/B FT1
CE
RoHS
REACH
Suitable for use in NFPA 79 applications


Spec Sheet:

View Spec Sheet for Complete Details (PDF)

Specifications:

Size: 22 AWG
Number of Conductors: 2
Conductor Strand: 19/34
Insulation Thickness: 0.007 inches
Jacket Thickness: 0.015 inches
Outside Diameter: 0.157 inches
Voltage: 300V
