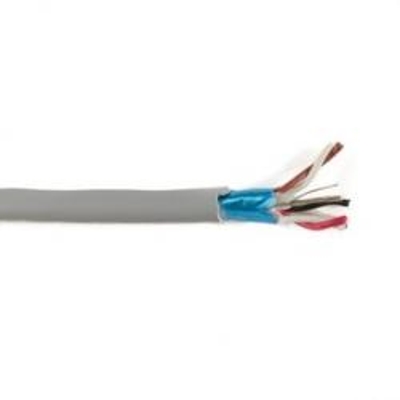

Alpha 78193, 20/3PR Foil Shielded Min.i Communication Cable, EcoCable, 300V

SKU AW78193
How will you purchase this wire?
3.100000 3.100000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 78193, 20/3PR Foil Shielded Min.i Communication Cable, EcoCable, 300V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • # of Conductors

    6 Conductors

  • # of Pairs

    3 Pair

  • O.D. (Inches)

    0.229

  • Shielded

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha Wire 78193, 20/3PR EcoCable® Mini Communication Foil Shielded Cable 300V

Color:
Black-Red, Black-White, Black-Green

Applications:
EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.

Features:
Up to 32% smaller than PVC
Up to 44% lighter than PVC
92% lower outgassing than PVC
100% recyclable mPPE insulation and jacketing
Contains no halogens, phthalates, or heavy metals
Multiconductor or multipair
Foil Shielded

Compliances:
UL AWM 21460
UL VW-1
CSA I A/B FT1
CE
RoHS
REACH
Suitable for use in NFPA 79 applications


Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 20 AWG
Number of Pairs: 3
Conductor Strand: 19/32
Insulation Thickness: 0.007 inches
Jacket Thickness: 0.015 inches
Outside Diameter: 0.229 inches
Voltage: 300V
