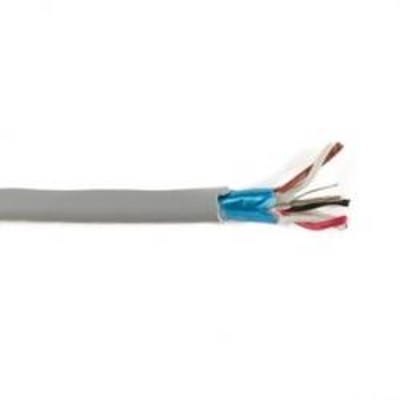

Alpha 78125, 24/5PR Foil Shielded Min.i Communication Cable, EcoCable

Alpha 78125, 24/5PR Foil Shielded Min.i Communication Cable, EcoCable
SKU AW78125

$

4.520000

4.520000

/ft
How will you purchase this wire?
4.520000 4.520000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 78125, 24/5PR Foil Shielded Min.i Communication Cable, EcoCable

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    10 Conductors

  • # of Pairs

    5 Pair

  • O.D. (Inches)

    0.211 in.

  • Shielded

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha Wire 78125, 24/5PR EcoCable® Mini Communication Recylable Foil Shielded Cable 300V

Color:
White-Black, White-Brown, White-Red, White-Orange, White-Yellow

Applications:
EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.

Features:
Up to 32% smaller than PVC
Up to 44% lighter than PVC
92% lower outgassing than PVC
100% recyclable mPPE insulation and jacketing
Contains no halogens, phthalates, or heavy metals
Foil Shielded

Compliances:
UL AWM 21460
UL VW-1
CSA I A/B FT1
CE
RoHS
REACH
WEEE
Suitable for use in NFPA 79 applications

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 24 AWG
Number of Pairs: 5
Conductor Strand: 19/36
Insulation Thickness: 0.007 inches
Jacket Thickness: 0.015 inches
Outside Diameter: 0.211 inches
Voltage: 300V



See Less
