Alpha 7130, 24 AWG Hook-Up Wire, IR-PVC, MIL-DTL-16878/2 (Type C), 1000/300V

SKU AW7130
How will you purchase this wire?
0.940000 0.940000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 7130, 24 AWG Hook-Up Wire, IR-PVC, MIL-DTL-16878/2 (Type C), 1000/300V

Grouped product items
Color Length (ft.)
N/A Length 1000 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • O.D. (Inches)

    0.056 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

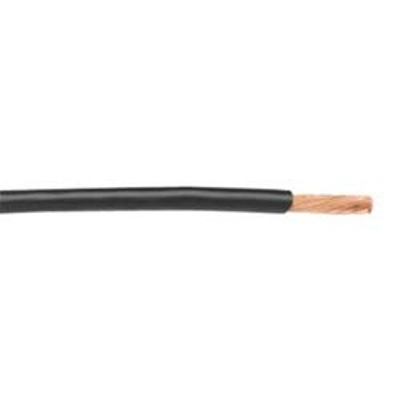

Alpha 7130, 24 AWG Stranded tinned copper conductor, 7/32 Hook-Up Wire, MIL-DTL-16878/2 (Type C), IR-PVC, 1000/300V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, chemicals, and Soldering Iron Resistant.

Conductor:
Stranded tinned copper

Insulation:
Irradiated PVC

Approvals:
CA Prop 65
MIL-DTL-16878/2 (Type C) (1000V)
CSA REW XLPVC FT1 (300V)
UL AWM 1430 (300V)

Specifications:

Size: 24 AWG
Conductor Strand: 7/32
Insulation Thickness: 0.016 inches
Outside Diameter: 0.056 inches
Temp: -55°C to +105°C
Voltage: 1000/300V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)
