Alpha 7055/19, 22 AWG Hook-Up Wire, IR-PVC, MIL-DTL-16878/1 (Type B), 600/150V

SKU AW7055/19
How will you purchase this wire?
0.660000 0.660000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000 50
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 7055/19, 22 AWG Hook-Up Wire, IR-PVC, MIL-DTL-16878/1 (Type B), 600/150V

Grouped product items
Color Length (ft.)
N/A Length 1000 ft.
N/A Length 50 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • O.D. (Inches)

    0.052 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

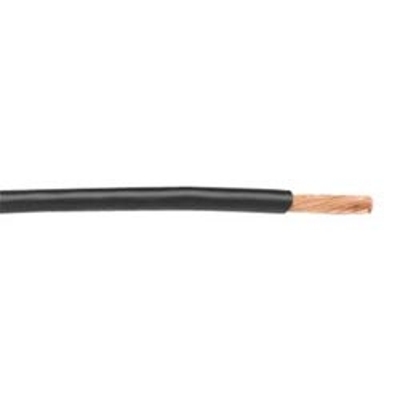

Alpha 7055/19, 22 AWG Stranded tinned copper conductor, 19/34 Hook-Up Wire, MIL-DTL-16878/1 (Type B), IR-PVC, 600/150V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, chemicals, and Soldering Iron Resistant.

Conductor:
Stranded tinned copper

Insulation:
Irradiated PVC

Approvals:
CA Prop 65
MIL-DTL-16878/1 (Type B)
CSA AWM I A/B
CSA FT1
UL AWM 1429

Specifications:

Size: 22 AWG
Conductor Strand: 19/34
Insulation Thickness: 0.010 inches
Outside Diameter: 0.052 inches
Temp: -55°C to +105°C (MIL), -55°C to +80°C (AWM, CSA)
Voltage: 600/150V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)
