$1.17 /ft.

In Stock

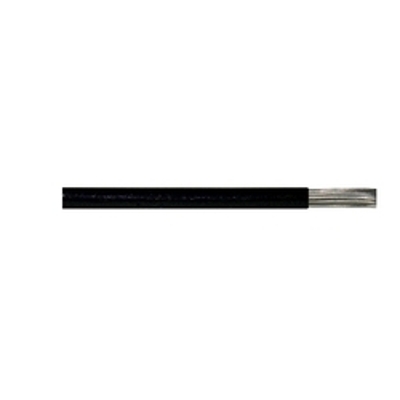

Alpha 6717, 14 AWG Hook-Up Wire, 41/30 Stranding, EcoWire, Halogen Free, 600V





Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha 6717, 14 AWG Hook-Up Wire, 41/30 Stranding, EcoWire, Halogen Free, 600V

SKU
AW6717-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Alpha Wire 6717, 14 AWG Hook-Up Wire, 41/30 Stranding EcoWire® Halogen Free, 600V

Color:
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, Green/Yellow or White

Applications:
Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable. EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments.

Features:
Better dielectric strength
Wide temperature range that meets VW-1
Low specific gravity
Up to 45% smaller diameter
Up to 40% lighter
Fully Recyclable


Compliances:

UL AWM 11028
UL VW-1
CSA AWM I A/B FT1
CE compliant
RoHS
REACH
WEEE



Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 14 AWG
Number of Conductors: 1
Conductor Strand: 41/30
Insulation Thickness: 0.011 inches
Outside Diameter: 0.096 inches
Voltage: 600V



More Information
Wire Size14 AWG
# of Conductors1 Conductor
O.D. (Inches)0.096 in.
