Alpha 6712, 24 AWG Hook-Up Wire, 7/32 Strandin.g, EcoWire, Halogen Free, 600V

SKU AW6712

$

0.400000

0.400000

/ft
How will you purchase this wire?
0.400000 0.400000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 6712, 24 AWG Hook-Up Wire, 7/32 Strandin.g, EcoWire, Halogen Free, 600V

Color Length (ft.) Price
Brown

Length (ft.)

$0.40
add Add a length
Red

Length (ft.)

$0.40
add Add a length
Yellow

Length (ft.)

$0.40
add Add a length
Green

Length (ft.)

$0.40
add Add a length
Blue

Length (ft.)

$0.40
add Add a length
Grouped product items
Color Length (ft.)
Brown Length 500 ft.
$200.00
Red Length 500 ft.
$200.00
Yellow Length 500 ft.
$200.00
Green Length 500 ft.
$200.00
Blue Length 500 ft.
$200.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    1 Conductor

  • O.D. (Inches)

    0.038

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

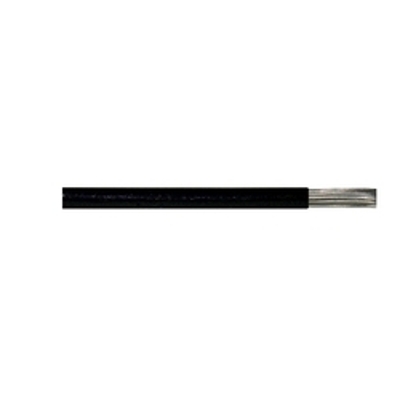

Alpha Wire 6712, 24 AWG Stranded 7/32 EcoWire® 600V Hook-Up Wire

Color:
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, or White

Applications:
Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable. EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments.

Features:
Better dielectric strength
Wide temperature range that meets VW-1
Low specific gravity
Up to 45% smaller diameter
Up to 40% lighter
Fully Recyclable

Compliances:

UL AWM 11028
UL VW-1
CSA AWM I A/B FT1
CE compliant
RoHS
REACH
WEEE


Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 24 AWG
Number of Conductors: 1
Conductor Strand: 7/32
Insulation Thickness: 0.010 inches
Outside Diameter: 0.043 inches
Voltage: 600V



See Less
