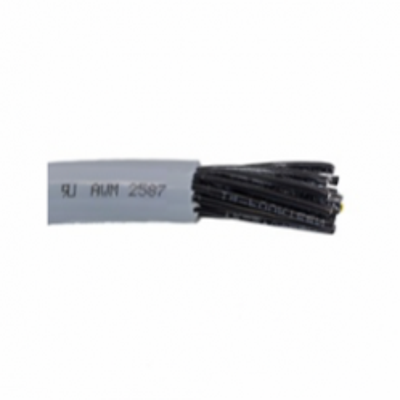

Alpha 65402, 14/2C Xtra-Guard Standard Flex Control Cable, Unshielded, 600V

SKU AW65402
How will you purchase this wire?
1.380000 1.380000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 65402, 14/2C Xtra-Guard Standard Flex Control Cable, Unshielded, 600V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    14 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.330 in.

  • Shielded

    No

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 65402, 14 AWG 2 Conductor Xtra-Guard Standard Flex Control Cable, Unshielded, 600V

Description:
Meet a wide range of flexing needs with Xtra-Guard Flex cables, from light flexing to continuous multiaxis flexing. These long-lasting flexible cables are designed to provide excellent performance in highflex, high torsion, and continuous flex applications, such as motion control and robotics.

Jacket Color:
Slate

Conductor Color Coding:
Black, Black

Applications:
• Cartesian robots
• Articulated multi-axis robots
• Automation networking
• Machine tools
• Automotive assembly equipment
• Conveyor systems
• Control panels
• Flex and static track
• Transfer shuttles
• Sensor/actuator-to-controller connections
• Material-handling equipment

Operating Temperature:
–5°C to +90°C (flexing)
–40°C to +90°C (stationary)

Flex Cycles:
1 Million

Compliances:
CA Prop 65
ROHS Compliant
CSA AWM I/II A/B FT1
UL AWM 2587
CE

Alpha 65402 Specifications:
Size: 14 AWG
Number of Conductors: 2
Conductor Strand: 41/30
Jacket Thickness: 0.044 inches
Outside Diameter: 0.330 inches
Voltage: 600V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details
