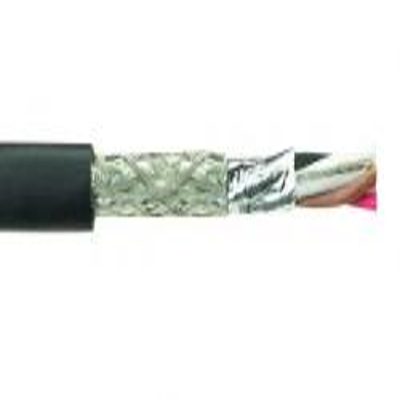

Alpha 6454, 22/1.5PR, Data and Bus Cable, RS-485, Foil+Braid Shielded, 300V

Alpha 6454, 22 AWG 1.5 Pair, 7/30 Stranding, Data and Bus Cable, RS-485, Foil+Braid Shielded, 300V

Color Coding:
Orange/White-White/Orange Pair, White-Blue single conductor

Applications:
1 to 4 pairs
Braid/foil shield to reduce electrical noise sensitivity
UL Type PLTC Open Wiring (300 V)
Sunlight resistant
Operating Temperature ( -20°C to +60°C)

Features:
Tinned copper conductors
Foam HDPE insulation
Foil + 65% tinned copper braid shield
Foil Facing Out
Black PVC jacket
UL Sunlight Resistant
120-ohm nominal impedance

Compliances:
CSA CM, CMG FT1
UL CM, CMG
UL TC, PLTC
Reach

Specifications:

Size: 22 AWG
Number of Pairs: 1.5
Conductor Strand: 7/30
Jacket Thickness: 0.042 inches
Outside Diameter: 0.300 inches
Weight: 0.051 lbs per/ft
Voltage: 300V

Spec Sheet:

View Spec Sheet for Complete Details
