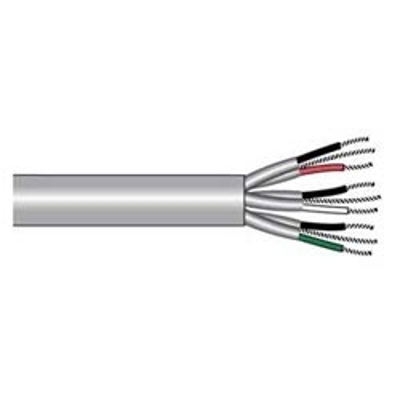

Alpha 6054C, 22/4PR, Communication and Control Cable, Individually Foil Shielded, 300V

SKU AW6054C
How will you purchase this wire?
4.310000 4.310000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 6054C, 22/4PR, Communication and Control Cable, Individually Foil Shielded, 300V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    8 Conductors

  • # of Pairs

    4 Pair

  • O.D. (Inches)

    0.364 in.

  • Shielded

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 6054C, 22 AWG 4 Pairs Communication and Control Cable, Individually Foil Shielded, PVC Insulation, PVC Jacket

Color:
Black Red, Black White, Black Green, Black Blue

Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
Stranded tinned copper conductors
PVC Insulation
Individual aluminum/polyester foil shield, 25% overlap min
Foil facing inward stranded tinned copper drain wire
Slate PVC jacket

Compliances:
CA Prop 65
CSA CMG FT4
UL CM,CMG VW-1
UL AWM 2464


Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:
Size: 22 AWG
Number of Pairs: 4
Conductor Strand: 7/30
Insulation Thickness: 0.016
Outside Diameter: 0.364 inches
Voltage: 300 V



See Less
