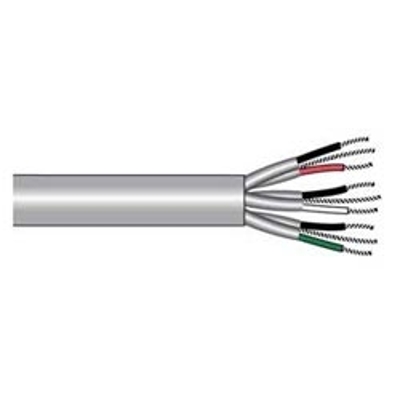

Alpha 6053C, 22/3PR, PVC Insulation, PVC Jacket 300V
Alpha 6053C, 22/3PR, Communication and Control Cable, individually Foil Shielded, 300V
Product Details
Learn everything you want to know about this product to make an informed purchaseAlpha 6053C, 22 AWG 3 Pairs Communication and Control Cable, Individually Foil Shielded, PVC Insulation, PVC Jacket
Color:
Black Red, Black White, Black Green
Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Features:
Stranded tinned copper conductors
PVC Insulation
Individual aluminum/polyester foil shield, 25% overlap min
Foil facing inward stranded tinned copper drain wire
Slate PVC jacket
Compliances:
CA Prop 65
CSA CMG FT4
UL CM,CMG VW-1
UL AWM 2464
Spec Sheet:
View Spec Sheet for Complete Details (PDF)
Specifications:
Size: 22 AWG
Number of Pairs: 3
Conductor Strand: 7/30
Insulation Thickness: 0.016
Outside Diameter: 0.334 inches
Voltage: 300 V
| Stocked | Yes |
|---|---|
| Wire Size | 22 AWC |
| # of Conductors | 6 Conductors |
| # of Pairs | 3 Pair |
| O.D. (Inches) | 0.334 in. |
| Shielded | Yes |
