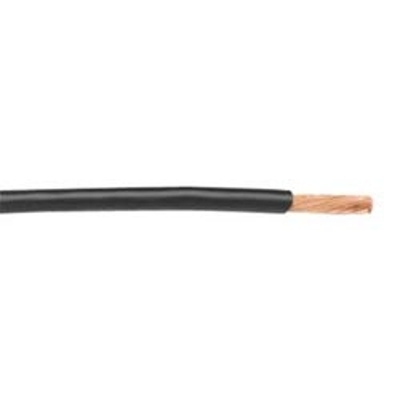

Alpha 5854/7, 24 AWG Hook-Up Wire, PTFE, MIL-DTL-16878/4 (Type E), 600V

SKU AW5854/7
How will you purchase this wire?
0.720000 0.720000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 5854/7, 24 AWG Hook-Up Wire, PTFE, MIL-DTL-16878/4 (Type E), 600V

Grouped product items
Color Length (ft.)
N/A Length 1000 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • O.D. (Inches)

    0.044 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 5854/7, 24 AWG Stranded silver-plated copper conductor, 7/32 Hook-Up Wire, MIL-DTL-16878/4 (Type E), PTFE, 600V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Stranded silver-plated copper

Insulation:
PTFE

Approvals:
CA Prop 65
MIL-DTL-16878/4 (Type E)
NEMA HP3-EXBEB
UL AWM 1213
UL VW-1

Specifications:

Size: 24 AWG
Conductor Strand: 7/32
Insulation Thickness: 0.010 inches
Outside Diameter: 0.044 inches
Temp: -60°C to +200°C (MIL), -60°C to +105°C (UL)
Voltage: 600V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)
