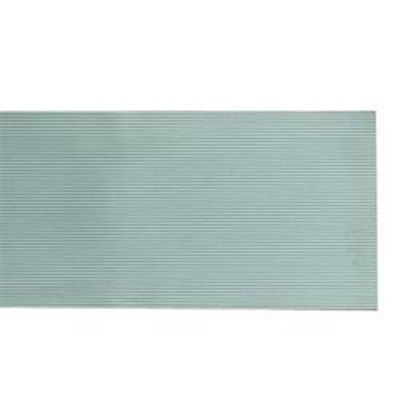

Alpha 3580/20, 28 AWG 20 Conductor Unshielded Flat Cable, 300V, 0.050 Centerlin.e

SKU AW3580/20
How will you purchase this wire?
1.880000 1.880000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 3580/20, 28 AWG 20 Conductor Unshielded Flat Cable, 300V, 0.050 Centerlin.e

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    28 AWG

  • # of Conductors

    20 Conductors

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.

Alpha 3580/20, 28 AWG 20 Conductor Communication and Control 300 V Unshielded, Flat Cable, 0.050 (1.27 mm) Centerline

Conductor:
Stranded tinned copper conductors

Material:
Stranded tinned copper conductors
Extruded PVC insulation (slate cable)
Thermally bonded PVC with clear PVC covering (color-coded cable)

Color:
AWM 2651: slate cable, with red polarity stripe on leading edge
AWM 20932: color-coded cable: brown, red, orange, yellow, green, blue, violet,

Electrical Characteristics:
Capacitance: 14 pF/ft (45.9 pF/m) nom. at 1 MHz
Propagation delay: 1.4 ns/ft (4.6 ns/m) @ 0.18 ns risetime
Impedance: 105 ohms (G-S-G configuration)
Near-end crosstalk: 3.2%
Far-end crosstalk: 11.5%
Crosstalk measured on adjacent lines, 1 ns rise

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 28 AWG
Number of Conductors: 20
Conductor Strand: 7/36
Insulation Thickness: 0.010 inches
Width: 1.00 inches
Span: 0. 95 inches
Voltage: 300V
