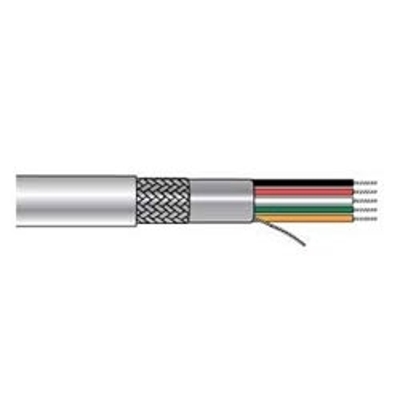

Alpha 3470C, 28 AWG 10 Conductor, Communication and Control Cable, Foil/Braid Shield, 300V





Min: 25 ft., Max: 2000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha 3470C, 28/10C Communication and Control Cable, Foil/Braid Shield, 300V

SKU
AW3470C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Alpha 3470C, 28 AWG 10 Conductor, Communication and Control Cable, Foil/Braid Shield, 300V

Color Code:

Black, Red, White, Green, Orange, Blue, Brown, Yellow, Violet, Slate

Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
Stranded tinned copper conductors
Semirigid PVC insulation
Foil + braid shield
Aluminum/polyester/aluminum foil shield, 25% overlap min
Foil facing outward
Stranded tinned copper drain wire equal in size to the conductor

Slate PVC jacket

Compliances:
CA Prop 65
Reach
UL AWM 2464 VW-1
UL CL2
CSA CMG FT4


Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:
Size: 28 AWG
Number of Conductors: 10
Conductor Strand: 7/36
Outside Diameter: 0.236 inches
Insulation Thickness: 0.010 inches
Weight: 0.035 lbs/ft
Voltage: 300 V



More Information
Wire Size28 AWG
# of Conductors10 Conductors
O.D. (Inches)0.236 in.
ShieldedYes
