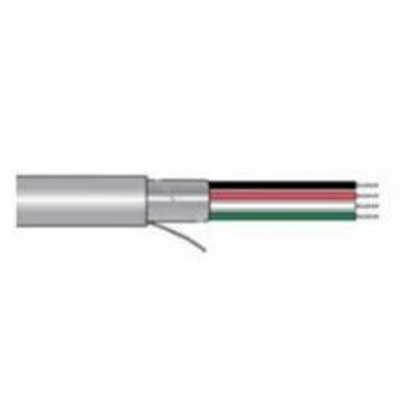

Alpha 3464C, 28 AWG 4 Conductor Communication and Control Cable, Foil Braid Shield, 300V
Alpha 3464C, 28 AWG 4 Conductor Communication and Control Cable, Foil Braid Shield, 300V
SKU
AW3464C-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseAlpha 3464C, 28 AWG 4 Conductor Communication and Control Cable, Foil Braid Shield, 300V
Color:
Slate Gray
Features:
Stranded tinned copper conductors. Semirigid PVC insulation Foil + braid shield, Aluminum/polyester/aluminum foil shield, 25% overlap min.
Foil facing outward Stranded tinned copper drain wire equal in size to the conductor with Slate PVC jacket.
Compliances:
CA Prop 65
CSA CMG
CSA FT4
UL AWM 2576
UL CM
UL VW-1
Spec Sheet:
View Spec Sheet for Complete Details
Specifications:
Size: 28 AWG
Number of Conductors: 4
Conductor Strand: 7/36
Jacket Thickness: 0.035 inches
Outside Diameter: 0.181 inches
Voltage: 300V
Stocked | Yes |
---|---|
Wire Size | 28 AWG |
# of Conductors | 4 Conductors |
O.D. (Inches) | 0.181 in. |
Shielded | Yes |
