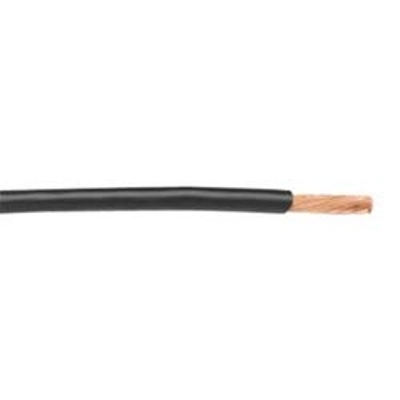

Alpha 3073, 20 AWG Stranded TC, 10/30 Hook-Up Wire, PVC, 600V

Alpha 3073, 20 AWG Stranded TC, 10/30 Hook-Up Wire, PVC, 600V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Stranded Tinned Copper

Insulation:
PVC

Approvals:
CA Prop 65
CE Conformance
CSA TEW 105
UL AWM 1015, UL MTW

Specifications:

Size: 20 AWG
Conductor Strand: 10/30
Insulation Thickness: 0.032 inches
Outside Diameter: 0.101 inches
Temp: -20°C to +105°C (AWM, TEW), -20°C to +90°C (MTW), -20°C to +75°C (THW), -20°C to +60°C (TW)
Voltage: 600V

Spec Sheet:

View Spec Sheet for Complete Details (PDF)
