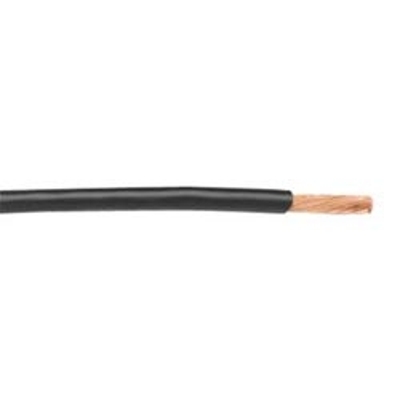

Alpha 3053, 20 AWG Stranded TC, 10/30, Hook-Up Wire, PVC, 300V

Alpha 3053, 20 AWG Stranded TC, 10/30, Hook-Up Wire, PVC, 300V
SKU AW3053

$

0.480000

0.480000

/ft
How will you purchase this wire?
0.480000 0.480000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... ....

Multiple lengths can be selected

250 500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 3053, 20 AWG Stranded TC, 10/30, Hook-Up Wire, PVC, 300V

Grouped product items
Color Length (ft.)
Black Length 250 ft.
$120.00
Red Length 250 ft.
$120.00
Black Length 500 ft.
$240.00
Red Length 500 ft.
$240.00
Black Length 1000 ft.
$480.00
Red Length 1000 ft.
$480.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • O.D. (Inches)

    0.069 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 3053, 20 AWG Stranded TC, 10/30, Hook-Up Wire, PVC, 300V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Stranded Tinned Copper

Insulation:
PVC

Approvals:
CA Prop 65
CSA FT1, CSA TR 64
UL AWM 1007, UL AWM 1569, UL VW-1

Specifications:

Size: 20 AWG
Conductor Strand: 10/30
Insulation Thickness: 0.016 inches
Outside Diameter: 0.069 inches
Temp: -40°C to +105°C (AWM 1569, CSA AWM), -40°C to +90°C (CSA TR-64), -40°C to +80°C 9AWM 1007, 1581)
Voltage: 300V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)
