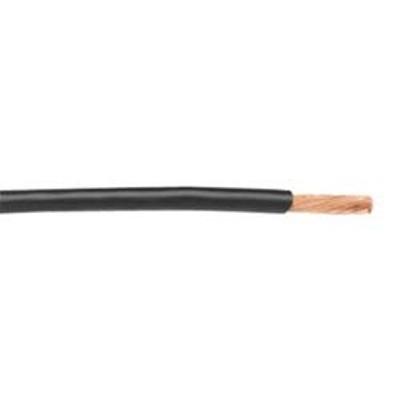

Alpha 3050/1, 24 AWG Solid TC, Hook-Up Wire, PVC, 300V

Alpha 3050/1, 24 AWG Solid TC, Hook-Up Wire, PVC, 300V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Solid Tinned Copper

Insulation:
PVC

Approvals:
CA Prop 65
CSA FT1, CSA TR 64
UL AWM 1007, UL AWM 1569, UL VW-1

Specifications:

Size: 24 AWG
Conductor Strand: Solid
Insulation Thickness: 0.016 inches
Outside Diameter: 0.052 inches
Temp: -40°C to +105°C (AWM 1569, CSA AWM), -40°C to +90°C (CSA TR-64), -40°C to +80°C 9AWM 1007, 1581)
Voltage: 300V

Spec Sheet:

View Spec Sheet for Complete Details (PDF)
