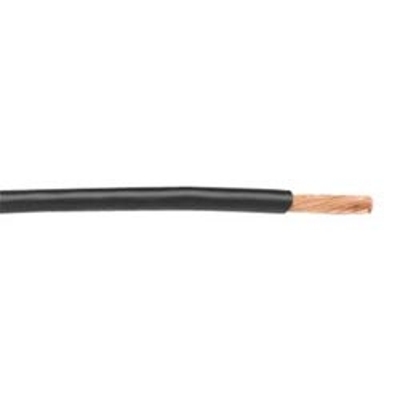

Alpha 2843/19, 26 AWG Hook-Up Wire, PTFE, MIL-DTL-16878/6 (Type ET), 250V

SKU AW2843/19
How will you purchase this wire?
0.080000 0.080000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

100
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 2843/19, 26 AWG Hook-Up Wire, PTFE, MIL-DTL-16878/6 (Type ET), 250V

Grouped product items
Color Length (ft.)
Blue Length 100 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    26 AWG

  • O.D. (Inches)

    0.031 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 2843/19, 26 AWG 19/38 Stranding, Hook-Up Wire, PTFE, MIL-DTL-16878/6 (Type ET), 250V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Stranded silver-plated copper

Insulation:
PTFE

Mil Spec:
MIL-DTL-16878/6 (Type ET)
UL VW-1
NEMA HP3

Specifications:

Size: 26 AWG
Conductor Strand: 19/38
Insulation Thickness: 0.006 inches
Outside Diameter: 0.031 inches
Temp: -60°C to +200°C
Voltage: 250V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)
