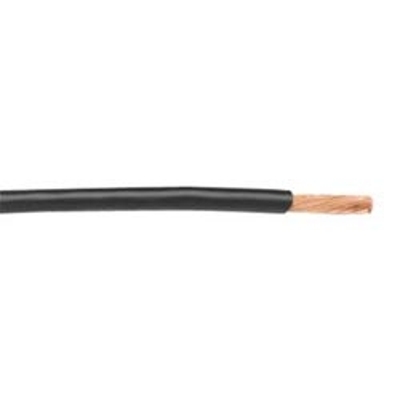

Alpha 2842/1, 28 AWG Hook-Up Wire, PTFE, MIL-DTL-16878/6 (Type ET), 250V

Alpha 2842/1, 28 AWG Solid silver plated copper conductor, Hook-Up Wire, PTFE, MIL-DTL-16878/6 (Type ET), 250V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Solid silver-plated copper

Insulation:
PTFE

Mil Spec:
MIL-DTL-16878/6 (Type ET)
UL VW-1
NEMA HP3

Specifications:

Size: 28 AWG
Conductor Strand: Solid
Insulation Thickness: 0.006 inches
Outside Diameter: 0.025 inches
Temp: -60°C to +200°C
Voltage: 250V

Spec Sheet:

View Spec Sheet for Complete Details (PDF)
