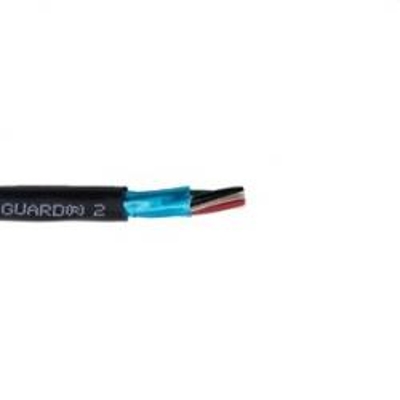

Alpha Wire 25462, 20/2C Xtra-Guard 2®, Oil and Abrasion Resistant Multiconductor Shielded Cable

Min: 50 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha 25462 20/2C Xtra-Guard 2, Oil and Abrasion Resistant Shielded Cable

SKU
AW25462-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Alpha Wire 25462, 20/2C Xtra-Guard 2®, Oil and Abrasion Resistant Shielded Cable

Color:
Black

Applications:
Alpha Wire Xtra-Guard 2® 0il and abrasion resistant cable is commonly used for: CNC machine centers, Automotive assembly plant operations, Military ground support systems, Packaging machinery, Petrochemical plant operations, and Geophysical exploration equipment

Features:
Stranded tinned copper conductors
Premium PVC insulation
Aluminum/polyester/aluminum foil shield, with 25% overlap and foil facing inward
Tinned copper drain wire sized the same as cable conductors
Fast, easy stripping of insulation and jacket
Color-coded, tinned copper conductors
Specially formulated, rugged polyurethane jacket offering 3x the tear and abrasion resistance of ordinary PVC
Resistance to cut-through and physical damage
Temperature ratings to 90°C (300 V) and 105°C (600 V)
Superior low-temperature flexibility to -30°C
UV resistant with outstanding ultraviolet light stability in all jacket colors
UL VW-1 and CSA FT-1 flammability ratings
Nylon ripcord for easy jacket stripping

Compliances:
UL AWM 20668
VW-1 UL Flame Test
CSA AWM I/II A/B FT1
CA Prop 65
REACH Compliant
RoHS Compliant

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:
Size: 20 AWG
Number of Conductors: 2
Conductor Strand: 7/28
Insulation Thickness: 0.016 inches
Jacket Thickness: 0.032 inches
Outside Diameter: 0.212 inches
Voltage: 300V



More Information
StockedYes
Wire Size20 AWG
# of Conductors2 Conductors
O.D. (Inches)0.212 in.
