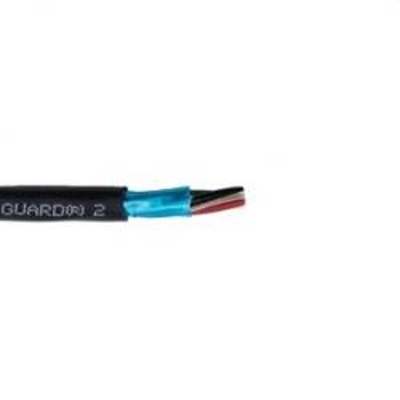

Alpha 25196 22/6C Xtra-Guard 2 Oil and Abrasion Resistant Shielded Cable

SKU AW25196

$

7.830000

7.830000

/ft
How will you purchase this wire?
7.830000 7.830000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 25196 22/6C Xtra-Guard 2 Oil and Abrasion Resistant Shielded Cable

Color Length (ft.) Price
N/A

Length (ft.)

$7.83
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$3,915.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    6 Conductors

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha Wire 25196, 22/6C Xtra-Guard 2®, Oil and Abrasion Resistant Foil Shielded Cable

Color:
1 Black, 2 Brown, 3 Red, 4 Orange, 5 Yellow, 6 Green

Applications:
Alpha Wire Xtra-Guard 2® 0il and abrasion resistant cable is commonly used for: CNC machine centers, Automotive assembly plant operations, Military ground support systems, Packaging machinery, Petrochemical plant operations, and Geophysical exploration equipment

Features:
Fast, easy stripping of insulation and jacket
Color-coded, tinned copper conductors
Specially formulated, rugged polyurethane jacket offering 3x the tear and abrasion resistance of ordinary PVC
Resistance to cut-through and physical damage
Temperature ratings to 90°C (300 V) and 105°C (600 V)
Superior low-temperature flexibility to -30°C
Outstanding ultraviolet light stability in all jacket colors
UL VW-1 and CSA FT-1 flammability ratings
Nylon ripcord for easy jacket stripping

Compliances:
UL AWM 20668
VW-1 UL Flame Test
CSA AWM I/II A/B FT1
CA Prop 65
REACH Compliant
RoHS Compliant

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications:

Size: 22 AWG
Number of Conductors: 6
Conductor Strand: 7/30
Insulation Thickness: 0.010 inches
Jacket Thickness: 0.032 inches
Outside Diameter: 0.223 inches
Voltage: 300V
