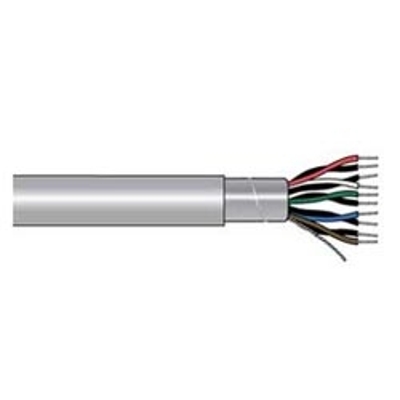

Alpha 2213C, 22 AWG 3 Pair Communication and Control Cable, Foil Shield, 150V

SKU AW2213C

$

2.200000

2.200000

/ft
How will you purchase this wire?
2.200000 2.200000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 2213C, 22 AWG 3 Pair Communication and Control Cable, Foil Shield, 150V

Color Length (ft.) Price
N/A

Length (ft.)

$2.20
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$1,100.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    6 Conductors

  • # of Pairs

    3 Pair

  • O.D. (Inches)

    0.245 in.

  • Shielded

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 2213C, 22 AWG 3 Pair Communication and Control Cable, Foil Shield, 150V

Color:
1 Black-Red, 2 Black-White, 3 Black-Green

Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
Stranded tinned copper conductors
PVC insulation
Aluminum/polyester foil shield, 25% overlap min
Foil facing outward
Stranded tinned copper drain wire equal in size to conductor
Slate PVC jacket

Compliances:
CA Prop 65
CSA CMG
CSA FT4
UL AWM 2576
UL CM
UL VW-1

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:
Size: 22 AWG
Number of Pairs: 3
Conductor Strand: 7/30
Jacket Thickness: 0.032 inches
Outside Diameter: 0.245 inches
Voltage: 150V



See Less
