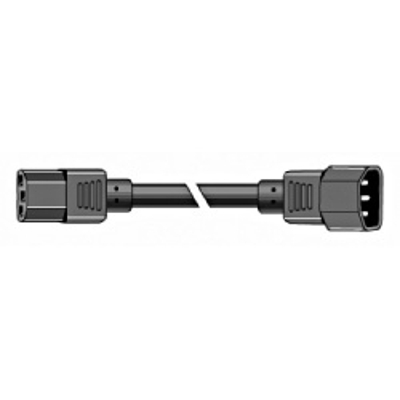

Alpha 1942/3, 16/3C, PVC, Type SJT Portable Cord, Unshielded, 300V Conductor Cordage
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Alpha 1942/3 - For consumer and industrial devices, business and communication machines, and medical and test equipment, our cords give you everything you need for reliable plugin power. All our cords are UL Listed and CSA Certified
Color Coding
Blue, Brown, Green/Yellow (IEC 60446)
Features
Stranded bare copper conductors
PVC insulation
PVC jacket
Tinned copper drain wire one even AWG size smaller than conductor
Operating Temperature (-30°C to +105°C)
Compliances
SJT
UL 62
CSA C22.2 No. 49
CSA FT2
Spec Sheet
View Spec Sheet for Complete Details
| Alpha 1942/3 Specifications | |
| Conductor Size AWG: | 16 AWG |
| Number of Conductors: | 3 |
| Stranding: | 65/34 |
| Conductor Material: | Stranded Bare Copper |
| Outside Diameter: | 0.336 inches |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Voltage: | 300V |
| Weight: | 0.072 lbs per/ft |
| Stocked | Yes |
|---|---|
| Wire Size | 16 AWG |
| # of Conductors | 3 Conductors |
| O.D. (Inches) | 0.336 in. |
