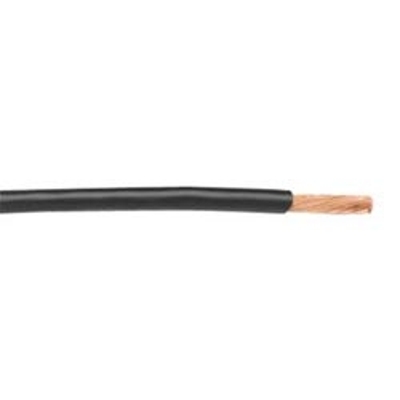

Alpha 1857, 18 AWG Hook-Up Wire, PVC, MIL-DTL-16878/1 (Type B), 600V

SKU AW1857

$

0.330000

0.330000

/ft
How will you purchase this wire?
0.330000 0.330000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 1857, 18 AWG Hook-Up Wire, PVC, MIL-DTL-16878/1 (Type B), 600V

Grouped product items
Color Length (ft.)
N/A Length 1000 ft.
$330.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • O.D. (Inches)

    0.068 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 1857, 18 AWG 7/26 Stranding, Hook-Up Wire, PVC, MIL-DTL-16878/1 (Type B), 600V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Stranded Tinned Copper

Insulation:
PVC

Mil Spec:
MIL-DTL-16878/1 (Type B)

Specifications:

Size: 18 AWG
Conductor Strand: 7/26
Insulation Thickness: 0.010 inches
Outside Diameter: 0.068 inches
Temp: -55°C to +105°C
Voltage: 600V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)
