    Alpha 1852, 28 AWG Hook-Up Wire, PVC,MIL-DTL-16878/1 (Type B) and MIL-W-76 Type LW, 600V

    Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    500 ft.
    1000 ft.
    Add a length

     Free Shipping on all orders over $1000

    Alpha 1852, 28 AWG Hook-Up Wire, PVC, MIL-DTL-16878/1 (Type B), 600V

    SKU
    AW1852

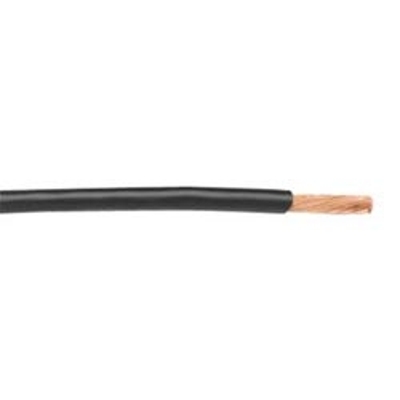

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    Alpha 1852, 28 AWG Hook-Up Wire, PVC, MIL-DTL-16878/1 (Type B) and MIL-W-76 Type LW, 600V

    Applications:
    Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

    Conductor:
    Stranded Tinned Copper

    Insulation:
    PVC

    Mil Spec:
    MIL-DTL-16878/1 (Type B) and MIL-W-76 Type LW

    Specifications:

    Size: 28 AWG
    Conductor Strand: 7/36
    Insulation Thickness: 0.010 inches
    Outside Diameter: 0.035 inches
    Temp: -55°C to +105°C
    Voltage: 600V

    Spec Sheet:

    Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

    More Information
    Wire Size28 AWG
    O.D. (Inches)0.035 in.
