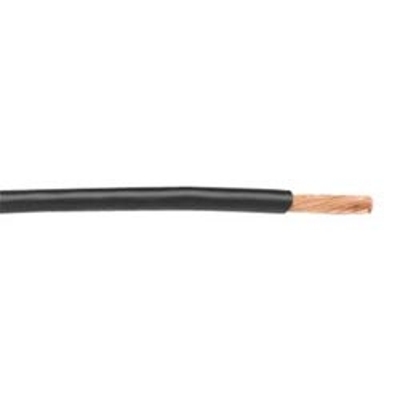

Alpha 1655, 8 AWG Hook-Up Wire, PVC, MIL-W-76B, Type HW, 600V

Alpha 1655,  8 AWG Hook-Up Wire, PVC, MIL-W-76B, Type HW, 600V

Applications:
Alpha Wire hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

Conductor:
Stranded Tinned Copper

Insulation:
PVC

Mil Spec:
MIL-W-76B

Specifications:

Size: 8 AWG
Conductor Strand: 133/29
Insulation Thickness: 0.045 inches
Outside Diameter: 0.259 inches
Temp: -40°C to +80°C
Voltage: 600V

Spec Sheet:

View Spec Sheet for Complete Details (PDF)
