    Alpha 1233 Fit Wire Management, Flat Tinned Copper Braid, 5/8 inch

    Out Of Stock

    SKU
    AW1233-FT
    Contact us for pricing
    Min: 100 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Add a length
    Add to Compare

    Alpha 1233 Fit Wire Management, Flat Tinned Copper Braid

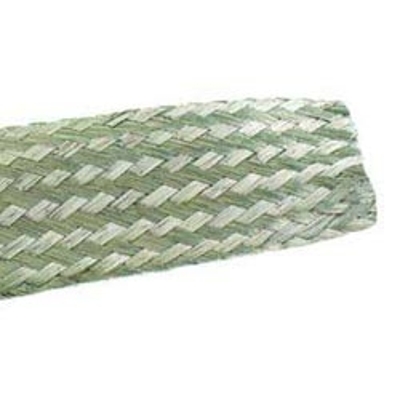

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    Cut to length - sold by the foot. Enter the desired footage in the QTY box.
    Minimum 1' to maximum 1000'.

    Alpha 1233 Fit Wire Management, Flat Tinned Copper Braid

    Application:
    Alpha braid is an exceptional, low resistance way to create a point-to-point ground strap.  In retrofit applications, braid is an ideal way to install additional shielding to your cable.

    Conductor:
    Solid Copper Conductor

    Material:
    Tinned Copper, per ASTMB-33 and CID-A-A-59551

    Color:
    Silver

    Braid Data:
    Nominal Dimensions:  .625 x .030 Inches
    AWG of Ends: 36
    Number of Carriers:  48
    Nominal Percent Coverage: N/A
    Total Number of Ends:  384
    Approx. Equiv. AWG:  10
    Approx. Ampacity: 53 Amps
    Federal Spec Number: AA59569F36T0375
    DC Resistance, Nominal:  1.53 Ohms/1000 ft.

    Spec Sheet:

    Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)






    More Information
    StockedYes
