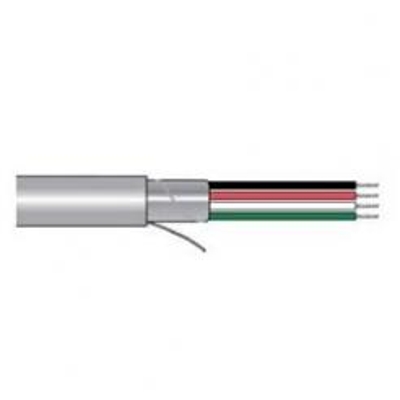

Alpha 1219/12C, 24 AWG 12 Conductor Communication & Control Cable, Foil Shield, 300V

SKU AW1219/12C

$

3.220000

3.220000

/ft
How will you purchase this wire?
3.220000 3.220000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 1219/12C, 24 AWG 12 Conductor Communication & Control Cable, Foil Shield, 300V

Color Length (ft.) Price
N/A

Length (ft.)

$3.22
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$1,610.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    12 Conductors

  • O.D. (Inches)

    0.251 in.

  • Shielded

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 1219/12C, 24 AWG 12 Conductor Communication & Control Cable, Foil Shield, 300V

Color:


Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
Stranded tinned copper conductors
PVC insulation
Aluminum/polyester foil shield, 25% overlap min
Foil facing outward Stranded tinned copper drain wire equal in size to conductor
Slate PVC jacket

Compliances:
CA Prop 65
CSA CMG
CSA FT4
UL AWM 2576
UL CM
UL VW-1

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:
Size: 24 AWG
Number of Conductors: 12
Conductor Strand: 7/32
Jacket Thickness: 0.032 inches
Outside Diameter: 0.251 inches
Voltage: 300V
