954 MCM Magnolia AAC Bare Aluminum

Min: 20 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

954 MCM Magnolia AAC Bare Aluminum

SKU
AACMagnolia-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

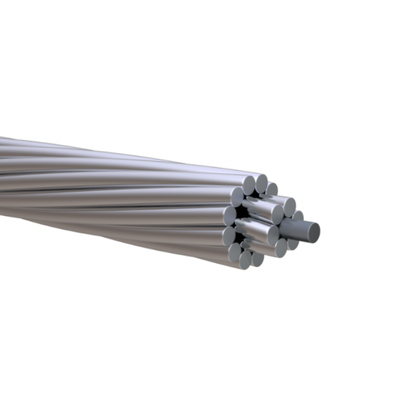

954 MCM Magnolia AAC Bare Aluminum Conductor

Application:

This wire is suitable for use in spans on wood poles, transmission towers, and other structures where high tensile strength is not required. Applications range from extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.

Applicable Standards:

-ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
- ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.

Construction:
Aluminum alloy 1350 wires concentric lay stranded wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers.

Specifications*:

Size: 954 MCM
Number of Strands: 37
Class: AA
Outside Diameter: 1.124 inches
Weight: 0.895 lbs per ft
Rated Strength (lb/ft): 16400
Resistance OHMS/1000 ft. AC @ 75C: 0.0226
Ampacity: 982 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size954 MCM
# of Conductors1 Conductor
O.D. (Inches)1.124
Ampacity 982
