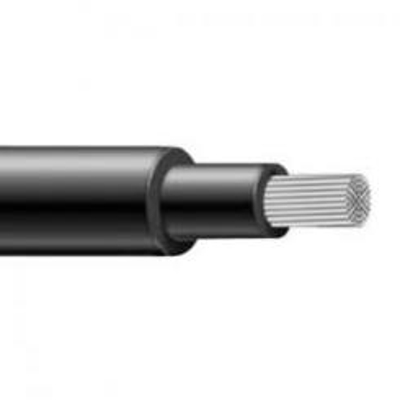

929 Diesel Locomotive Cable 2KV

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
DLO provides maximum performance. Tough enough to withstand daily abuse, temperature extremes and high-stress industrial environments. Diesel electric locomotives. For applications where flexible power leads must be installed in conduit or raceway. Motor leads.

Features:
90ºC temperature rating. Excellent impact and abrasion resistance. Resists oils, acids, alkalies, heat and flame. Flexible tinned copper stranding

Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Standards:
UL Listed
Accepted by MSHA for listing as flameresistant
CSA R90
RoHS Compliant

Construction:
Conductor:
Flexible strand tin coated copper conductor, B-172, ASTM B-33
Insulation:
Ethylene-propylene rubber (EPR)

Specifications*:

Size: 929
Conductor Strand: 2300/24
Insulation Thickness: 0.110 inches
Jacket Thickness: 1.65 mm / 0.065 inches
Outside Diameter: 38.5 mm / 1.516 inches
Weight: 3.455 lbs per ft
Allowable Ampacity:  1005 Amps @ Ambient Temp 30C

*Data provided on this page is subject to change based on different manufacturers variances.
