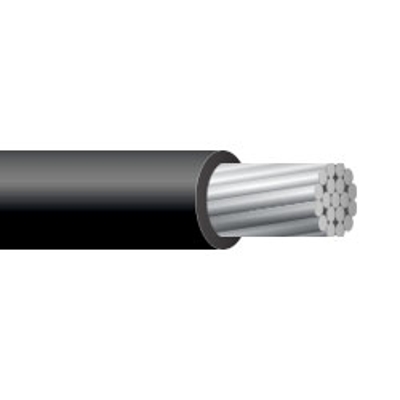

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire
Product Details
Learn everything you want to know about this product to make an informed purchaseAlso available by the spool. Please click here for pricing.
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire
Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.
Applicable Standards:
- UL 44
- ASTM standards B800 and B801
Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801
Insulation:
UL recognized cross-linked polyethylene
Specifications*:
Size: 900 MCM
Number of Strands: 58
Insulation Thickness: 0.080 inches
Outside Diameter: 1.162 inches
Weight: 0.960 lbs per ft
Ampacity: 480 Amps at 90°C
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | XHHW-2 |
Type of Structure | Residential, Commercial, Industrial |
Wire Size | 900 MCM |
# of Conductors | 1 Conductor |
O.D. (Inches) | 1.162 |
Ampacity | 475 |
Voltage | 600V |
Temp. Rating | 90°C |
Insulation Material | XLPE - Cross-linked Polyethylene |
Direct Burial | No |
Sunlight Resistant | Yes |
Location Use | Wet, Dry |
Indoor/Outdoor Use | Indoor, Outdoor |
Applications | General purpose wiring for lighting & power |
Standards | UL Listed, c(UL) Listed, RoHS Compliant |
Features | Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant |
