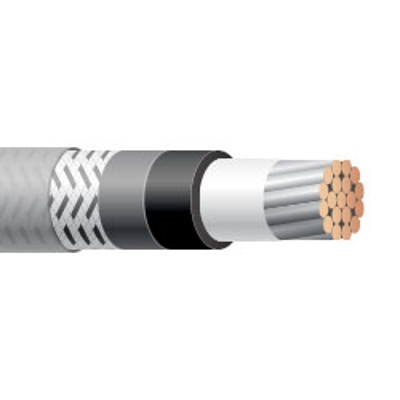

TelcoFlex® III Central Office Power Wire and Cable Class B Strand With Braid



Black color Due Date: End of May 2024

Min: 20 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

8 AWG TelcoFlex III KS24194 L3

SKU
TF38-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for different colors or longer put ups.

Applications:
TelcoFlex® III Central Office Power Wire and Cable Class B Strand With Braid. The Cable has low-smoke, lead-free and silicone-free non-halogenated insulation. UL Central Office Power Cable 105ºC dry, 60ºC wet. UL Listed RHH/LS FT4 and VW-1, 90ºC dry, 60ºC wet, 600 volts. Sizes 1/0 and larger are UL, CT USE rated. CSA AWM I B 105ºC, 600 volts.

Specifications:
Meets or exceeds the following:
UL Listed RHH/LS
FT-4 Flame Test
VW-1
ASTM B-33
Physical and Electrical tests in accordance with UL Standard 44 Requirements
CSA AWM I B 105ºC
IEC 60674 and 60332
RoHS / Reach Compliant

Construction:
Southwire's TelcoFlex® lll cable is single conductor with a class B stranded tinned copper conforming to ASTM B-33 and Underwriters' laboratories requirements. An opaque mylar tape shall be applied over the conductor to facilitate stripping. Insulation is 90ºC rated low smoke, non-halogen, TelcoHyde™ 5221 conforming to Underwriters' Laboratories standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105ºC AWM rated. The insulation has a limiting oxygen index of 35%.

Specifications*:

Size: 8 AWG
Conductor Strand: 7/.0486
Insulation Thickness: 0.060 inches
Outside Diameter: 0.327 inches
Weight: 0.092 lbs per ft
Max. D.C. Res. @ 20ºC: 0.678

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size8 AWG
# of Conductors1 Conductor
O.D. (Inches)0.327
