Discontinued

Solar Photovoltaic (PV) Wire XLP/USE-2 or RHW-2 or RHH 90°C - 600 Volt Stranded Building Wire. Cut to length - sold by the Foot.

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

8 AWG Photovoltaic Wire 600V UL 4703 (PV Wire)

SKU
PVXLU8-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

***Currently out of stock.  We have the 2kV rating wire available only***

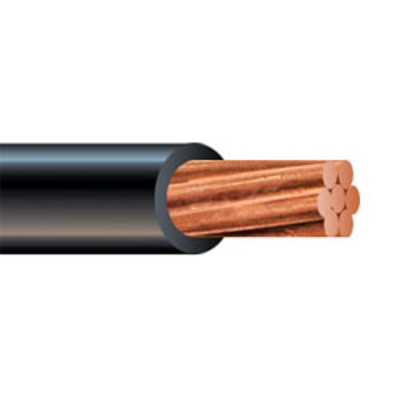

#8 AWG Solar Photovoltaic (PV) Wire

600 Volt Stranded Wire - XLP/USE-2 or RHW-2 or RHH 90°C -

Cut to length - sold by the Foot.

Description:
Single copper conductor, stranded, insulated with moisture and heat resistant, XLP cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.

Applications:
For use in Photovoitic (PV) Solar Power Applications.
Rated for direct burial
Used to connect solar panels.

Features:
Stranded annealed copper conductors.
Sunilight resistant Cross-Linked Polyethelene (XLP) insulation
-40°C to +90°C

Standards:
ASTM B8
Listed as type USE-2 per UL 854
Listed as type RHH/RHW-2 per UL 44
Listed as type PV per UL 4703

Specifications*:

Size: 8 Gauge
Number of Strands: 7
Insulation Thickness (Conductor): 0.075 inches
Outside Diameter: 0.292 inches
Weight: 0.080 lbs per ft
Allowable Ampacity: 55 Amps at 90°C Wet/Dry

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeSolar PV
Wire Size8 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)0.292
Ampacity 55
Voltage600V
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
StandardsUL Listed, RoHS Compliant
