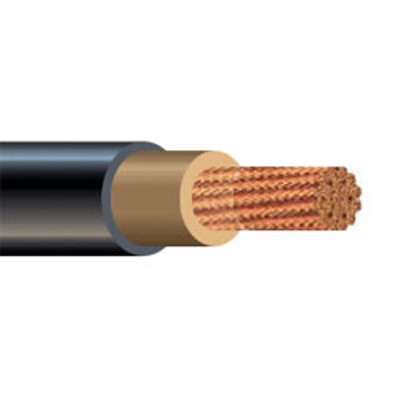

8 AWG 1C Type W Portable Power Cable

Min: 20 ft., Max: 3000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

8 AWG 1C Type W Portable Power Cable

SKU
TWC81C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase
2000V, 90°C (-40°C), Oil and Sunlight Resistant.

Color:
Black

Applications:
Type W Portable Power Cable is suitable for use in industrial and light-to-medium mining applications, heavy-duty service, temporary power supply cables, motor, battery and generator leads. Also suitable for mobile and portable electrical equipment.

Compliances:
- UL Listed - Type W per UL 1650
- Conductors are manufactured in accordance with ASTM and B-172
- Made in accordance with ICEA S-75-381
- NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
- MSHA accepted, P-136-135, LR65300
- UL Listed as Type RHH or RHW-2
- CSA or c(UL) Certified as applicable
- RoHS Compliant
- Meets FT-5 Flame Test

Conductor:
Fully annealed stranded bare copper per ASTM B-172.

Insulation:
EP rubber insulation

Jacket:
CPE rubber jacket. Jackets are reinforced by a braid or serve of synthetic material.

Specifications*:

Size: 8 AWG
Number of Conductors: 1
Conductor Strand: 133
Nominal Insulation Thickness: 0.060 inches / 1.52 mm
Outside Diameter: 0.490 inches / 11.18 mm
Current AMPS: 80
Net Weight: 0.155 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size8 AWG
# of Conductors1 Conductor
O.D. (Inches)0.49
Ampacity 80
Jacket ColorBlack
