8-3C w/ 3 #14 Grounds Shielded VFD Cable - sold by the Foot.

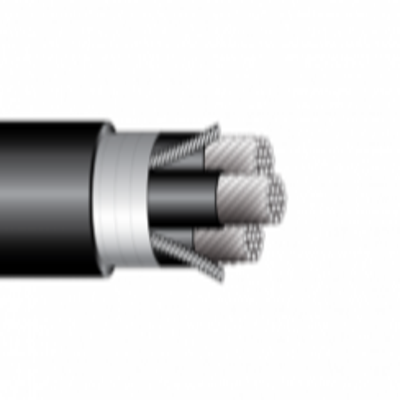

8-3C w/ 3 #14 Grounds Shielded VFD Cable
Product DetailsLearn everything you want to know about this product to make an informed purchase
XLP Insulation, PVC Jacket, 600/1000V UL Type TC-ER, 90°C
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.
A flexible, shielded power cable specifically engineered for use in variable frequency AC motor drive (VFD) applications.
Stranded tinned copper circuit conductors
Crossed-linked polyolefin (XLPO), flexible and low dielectric
Black polyvinyl chloride (PVC) that is sunlight, moisture, oil and abrasion resistant and direct burial rated, for use from -40C to 90C.
Aluminum polyester & 85% tinned copper braid shield
3 Stranded tinned copper conductors
UL 1277, Type TC-ER, Type XHHW-2
UL approved as 1000V flexible motor supply cable
UL listed as VFD or WTTC per UL 2277 for Flexible Motor Supply and Wind Turbine Tray Cables
CSA FT-4 Vertical tray flame test
CSA AWM I/II A/B singles
C(UL) CIC-TC per CSA standard C22.2 No. 239-09 & 230-09
CSA Type AWM per CSA standard C22.2 No. 210-11
Meets UL 1202/1583 70,000 BTU flame test
Meets ICEA T-29-520 210,000 BTU flame test
Suitable for use in Class I Division II hazardous locations
RoHS II & REACH compliant
Size: 8 AWG
Number of Conductors: 3
Conductor Strand: 133
Insulation Thickness: 0.045 inches
Ground Wire: 14 AWG x 3
Jacket Thickness: 0.060 inches
Outside Diameter: 0.719 inches
Weight: 0.368 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||8 AWG|
