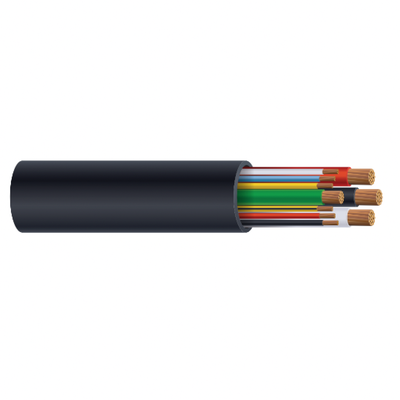

#8-3C + #18-9C w/ #10 Ground Type TC/TC-ER-JP Generator Cable

#8-3C + #18-9C w/ #10 Ground Type TC/TC-ER-JP Generator Composite Cable (50 amps, 7kW-11kW)

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:

Multi-conductor all in one cable for connecting a generator to a transfer switch. JP (Joist Pull) rated per the 2017 NEC 336.10(9). Black jacket and color coded inner conductors.

Specifications:

Size: 4 AWG (3 Conductors), 18 AWG (9 Conductors) Ground Wire Size: 8 AWG Allowable Ampacity: 85 Amps

Standards

UL Listed as TC-ER-JP per UL Standard 1277 Rated 75C wet or dry to meet UL 83 for THHN/THWN Meets cold bend test at -40°C ICEA S-73-532 Meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements REACH compliant per Regulation (EC) No 1907/2006 (197) Updated January 15, 2019 Cable is suitable for use in Class I Division 2 hazardous locations Element 1 & 2 conductors pass UL VW-1 flame test, rated THWN/VW-1 ASTM B3, B174, B801

***THIS MATERIAL IN NON-RETURNABLE***

All values are nominal and subject to correction.
*Ampacity according to NEC 310.15(B)(16) @30°C THWN 75°C insulated wires.
**Installations shall follow NEC, applicable correcting factors shall be considered when conditions vary.
