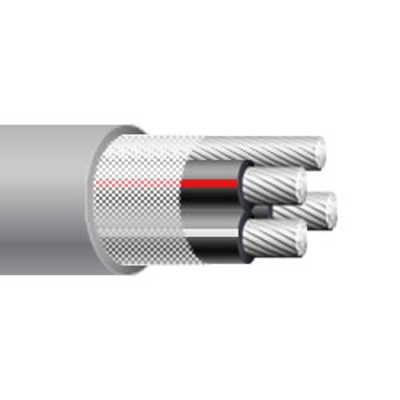

8-8-8 Aluminum SER Cable w/ 8AWG Ground
Product Details
Learn everything you want to know about this product to make an informed purchaseApplications:
SER is type SE, Style R cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90_C for use in wet and dry locations. SER cables are LEAD FREE and RoHS compliant.
Construction:
Conductor - Compact stranded AA-8000 series aluminum alloy (ACM) per ASTM B801 or B836. #8 AWG is solid AA-8000 series aluminum alloy (ACM) per ASTM B800.
Insulation - Color coded cross-linked polyethylene (XLPE).
Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration.
Jacket - Sunlight resistant, LEAD FREE, flame retardant, gray polyvinyl chloride (PVC) material.
Standards:
Meets UL 854 Service Entrance Cable
Specifications*:
Insulated Conductor Size: 8 AWG
Bare Neutral Size: 8 AWG (7)
Outside Diameter: 0.588 inches
Ampacity amps 45
Net Weight: .128 lbs/ft
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | Service Entrance Cable |
Type of Structure | Residential, Commercial |
Wire Size | 8 AWG |
# of Conductors | 3 Conductors w/ Ground |
Ground Size | 8 AWG |
Conductor Material | Aluminum |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.588 |
Ampacity | 45 |
Voltage | 600V |
Temp. Rating | 90°C |
Insulation Material | XLPE - Cross-linked Polyethylene |
Jacket Material | PVC - Polyvinyl Chloride |
Jacket Color | Gray |
Direct Burial | No |
Sunlight Resistant | Yes |
Location Use | Wet, Dry |
Standards | UL Listed |
