77.47 MCM Ames AAAC Bare Aluminum

Min: 100 ft., Max: 5000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

77.47 MCM Ames AAAC Bare Aluminum

SKU
AAACAmes-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

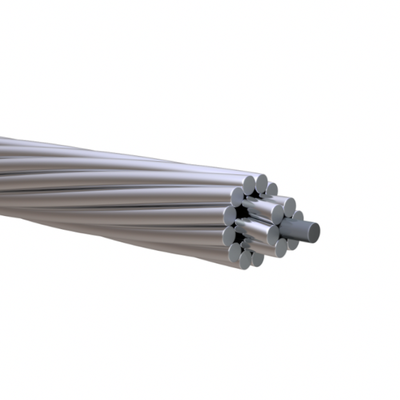

77.47 MCM Ames AAAC Bare Aluminum Conductor

Application:

This wire is suitable for use in spans on wood poles, transmission towers, and other structures where AAC conductors do not provide the required strength and ACSR conductors are not required or suitable.  Applications range from extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

Applicable Standards:
- ASTM B-398:  Aluminum Alloy 6201-T81 aluminum alloy conductors
- ASTM B-399:  Concentric Lay stranded 6201-T81 aluminum alloy conductors

Construction:
Bare aluminum alloy conductors made of 6201 Aluminum alloy are wrapped helically around a central wire.

Specifications*:

Size: 77.47
Number of Strands: 7
AWG/KCMIL: 2
Outside Diameter: 0.316 inches
Weight: 0.072 lbs per ft
Rated Strength (lb/ft): 2800
Resistance OHMS/1000 ft. AC @ 75C: 0.310
Ampacity: 191 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size77.47 MCM
# of Conductors1 Conductor
O.D. (Inches)0.316
Ampacity 191
