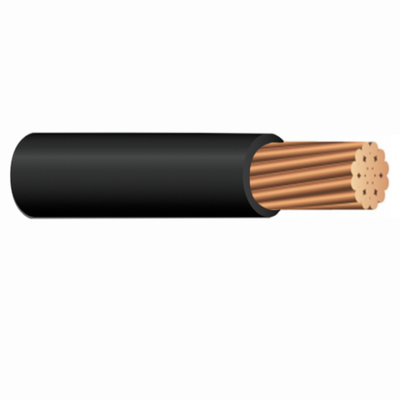

XLP/USE-2/RHW-2/RHH 90°C - 600 Volt Stranded Building Wire. Cut to length - sold by the Foot.
750 MCM XLP/USE-2/RHH/RHW-2 Building Wire
Product DetailsLearn everything you want to know about this product to make an informed purchase
XLP/USE-2 or RHW-2 or RHH 90°C - 600 Volt Stranded Building Wire. Cut to length - sold by the Foot.
Single copper conductor, stranded, insulated with moisture and heat resistant, chemically cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.
Types USE-2, RHH/RHW-2 are suitable for use in general purpose wiring applications and may be installed in raceway, conduit, direct burial and aerial installations where a cable having superior flame retardance is required.
CT use 1/0 and larger Gasoline and Oil resistant Direct Burial/Sunlight resistant.
Temperature Rating -40°C TO 90°C
ASTM B3, B8 and B787
UL 44 and UL 854, ICEA S-95-658/NEMA WC-70
C(UL) US RW90 1kV:CSA/UL Listed
Federal spec. A-A-59544
Suitable for use in 105° C Dry System
Size: 750 MCM
Number of Strands: 61
Insulation Thickness (Conductor): 0.110 inches
Outside Diameter: 1.218 inches
Weight: 2.484 lbs per ft
Allowable Ampacity: 535 Amps at 90°C Wet/Dry
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||XLP/USE-2 or RHH/RHW-2|
|Wire Size||750 MCM|
|# of Conductors||1 Conductor|
|Conductor Material||Bare Copper|
|Stranded or Solid||Stranded|
|Insulation Material||XLPE - Cross-linked Polyethylene|
|Location Use||Wet, Dry|
|Indoor/Outdoor Use||Indoor, Outdoor|
|Standards||UL Listed, c(UL) Listed, RoHS Compliant|
|Features||Sunlight Resistant, Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant|
