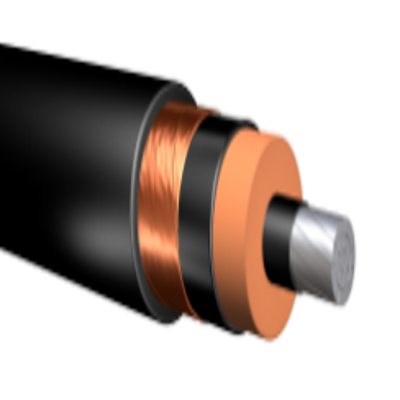

750 MCM Aluminum MV-105, 15kV, EPR/PVC Power Cable w/ Copper Tape Shield

SKU ALMV10575015kv
How will you purchase this wire?
14.300000 14.300000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

750 MCM Aluminum MV-105, 15kV, EPR/PVC Power Cable w/ Copper Tape Shield

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    750 MCM

  • O.D. (Inches)

    1.639

  • Ampacity

    540

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

750 MCM Aluminum MV-105, 15kV, EPR/PVC Power Cable w/ Copper Tape Shield

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Applications:
For use in aerial, direct burial, cable tray, conduit, and underground duct installations as permitted by the National Electric Code. The cable is capable of operating continuously with a conductor temperature not to exceed 105⁰C for normal operation, 140⁰C for emergency overload conditions, and 250⁰C for short circuit conditions. It is rated at 15,000V with 133% insulation level (ungrounded system). Maximum sidewall pressure is 1000 lbs. This cable does not require the use of pulling lubricant.

Jacket:
Sunlight resistant PVC per ICEA S-97-682, with average thickness in accordance to Table 7-3 of ICEA.

Standards:
UL 1685 – 1/0 and larger, UL-CT Flame Exposure Test • UL 1072 – Medium Voltage Power Cables • ICEA S-93-639 (NEMA WC74) – S=46kV Shielded Power Cable fo use in Transmission and Distribution of Electrical Energy

Conductors:
8000 series aluminum compact conductor in accordance with ASTM specs B800and B801 and ICEA part 2, Section 2.1 and 2.5.

Insulation:
Ethylene propylene rubber (EPR) with a nominal thickness of 0.220

Insulation Shield:
Extruded layer of semi-conducting thermosetting material which shall be identified as being semiconducting. Over this layer will be applied a helically wrapped 5-mil copper tape with 25% overlap.

Flame Tests:
UL 1685 – 1/0 and larger, UL-CT Flame Exposure Test

Voltage:
15 kV

Specifications*:

Size: 750 MCM
Min Jacket Thickness: 0.07 inches
Outside Diameter: 1.639 inches
Weight: 1.583 lbs per ft
Ampacity: Duct =  490 amps - Conduit in air =  540 amps

*Data provided on this page is subject to change based on different manufacturers variances.
