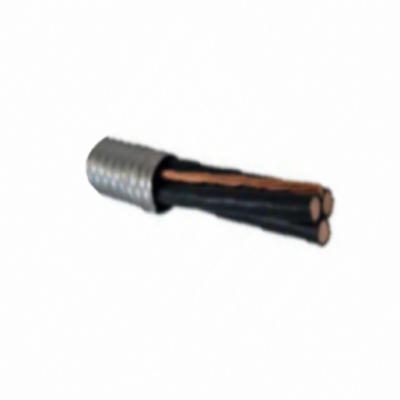

750 MCM 4 Conductor Copper MC Cable w/ Ground

SKU MC7504C
How will you purchase this wire?
30.150000 30.150000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

750 MCM 4 Conductor Copper MC Cable w/ Ground

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    MC

  • Wire Size

    750 MCM

  • # of Conductors

    4 Conductors w/ Ground

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    3.016

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

750 MCM 4 Conductor Stranded Copper MC Cable + #1 Ground

Cut to length - sold by the foot.

Applications:
Feeder MC Cable is suitable for use in branch, feeder and distribution circuits in commercial, industrial, institutional and multi-residential applications. MC Cable is approved for power, lighting, control and signal circuits. MC Cable can be used in cable tray and other approved raceways and can be exposed or concealed. MC Cable can be used in places of assembly of 100 people or more, such as studios and theaters. Voltage ratings should not exceed 600V in any application.

Conductors:
Feeder MC has a compact or compressed stranded, soft drawn bare copper conductor.

Insulation:
Feeder MC has a moisture and flame resistant cross linked polyethylene XLPE XHHW-2 insulation. Color coding is Method 4, black conductors with numbers.

Ground:
Feeder MC has a bare copper ground conductor. All conductors are cabled together and wrapped with Mylar Tape.

Armor:
Feeder MC has an overall aluminum interlocked armor.

Standards:UL 44, 1569, 1581, and 1685
UL listed 600 Volts at 90C Dry/ 75C Wet, FT4
IEEEE 1202 70,000 BTU vertical flame test
Meets NEC Articles 230-43, 300-22, 321, 334, 518, 520 and 530 for installation
rated Fire Wall Penetration to 600 Volts at 90C.
Federal Spec A-A59544 (formerly J – C – 30B)
Class I Div. 2, Class II Div. 2 and Class III Div. 1 Div. 2 for hazardous locations

Specifications*:

Size: 750MCM
Conductors: 4 plus 1 ground
Ground Size: #1
Approx Diameter: 3.016 inches
Weight: 10.779 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.
